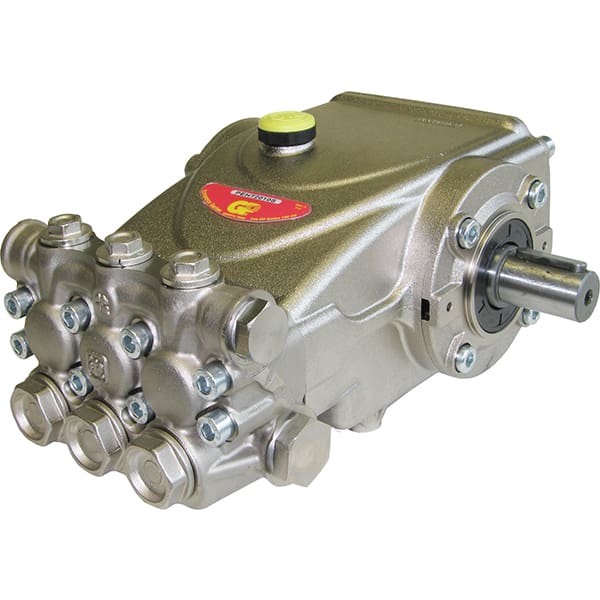

PEHT Series

Flows from 2.6 GPM to 4.0 GPM Triplex plunger pump Includes all Emperor features Forged Stainless Steel manifold (AISI420B) Nickel-plated crankcase PEHT Series – Specifications:Max. Inlet Pressure: 125 PSIMax. Fluid Temperature: 185° FInlet Port Thread: 1/2″-11 BSP-FDischarge Port Thread: 3/8″-19...

Learn More

PEHT Series

Flows from 2.6 GPM to 4.0 GPM
Triplex plunger pump
Includes all Emperor features
Forged Stainless Steel manifold (AISI420B)
Nickel-plated crankcase

PEHT Series – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 185° F
Inlet Port Thread: 1/2″-11 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 10.4″ x 8.8″ x 5.4″
Crankcase Oil Capacity: 22 oz.
Use GP Series 100 Oil

PEHT Series

Flows from 2.6 GPM to 4.0 GPM
Triplex plunger pump
Includes all Emperor features
Forged Stainless Steel manifold (AISI420B)
Nickel-plated crankcase

PEHT Series – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 185° F
Inlet Port Thread: 1/2″-11 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 10.4″ x 8.8″ x 5.4″
Crankcase Oil Capacity: 22 oz.
Use GP Series 100 Oil

PEHT2010S

Specifications

GPM	4.0
PSI	3000
RPM	1750
Bore	1.417 in./36 mm
Stroke	.590 in./10 mm
HP	8.2 EBHP
Ship Weight	21.0 lbs.

Download Specifications Platinum Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT

PEHT2010S

Specifications

GPM	3.43
PSI	3000
RPM	1450
Bore	.787 in./20 mm
Stroke	.590 in./10 mm
HP	7.0 EBHP
Ship Weight	21.0 lbs.

Download Specifications Platinum Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT

PEHT2012S

Specifications

GPM	4.76
PSI	3000
RPM	1750
Bore	.787 in./20 mm
Stroke	.472 in./12 mm
HP	9.8 EBHP
Ship Weight	21.0 lbs.

Download Specifications Platinum Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT

PEHT2012S

Specifications

GPM	3.96
PSI	3000
RPM	1450
Bore	.787 in./20 mm
Stroke	0.472 in./12 mm
HP	8.1 EBHP
Ship Weight	21.0 lbs.

Download Specifications Platinum Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT

PEHT2012S

Specifications

GPM	2.64
PSI	3000
RPM	950
Bore	.787 in./20 mm
Stroke	.472 in./12 mm
HP	5.4 EBHP
Ship Weight	21.0 lbs.

Download Specifications Platinum Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT

PEHT2213S

Specifications

GPM	5.55
PSI	3000
RPM	1450
Bore	.688 in./22 mm
Stroke	.512 in./13 mm
HP	11.4 EBHP
Ship Weight	21.0 lbs.

Download Specifications Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT

PEHT2213S

Specifications

GPM	3.43
PSI	3000
RPM	950
Bore	.688 in./22 mm
Stroke	.512 in./13 mm
HP	7.0 EBHP
Ship Weight	21.0 lbs.

Download Specifications

Details

PEHT Series 59HT - 24 mm solid shaft.

PEHT Series 59HT – 24 mm solid shaft.

PEHT2214S

Specifications

GPM	4.0
PSI	3000
RPM	950
Bore	.688 in./22 mm
Stroke	0.551 in./14 mm
HP	5.2 EBHP
Ship Weight	21.0 lbs.

Download Specifications Platinum Emperor Brochure

Details

PEHT SERIES 59HT - 24 MM SOLID SHAFT

PEHT SERIES 59HT – 24 MM SOLID SHAFT
