• Flows from 1.6 GPM to 3.8 GPM
  • 316 stainless steel fluid end for superior corrosion protection
  • Energized special pressure packings
  • 316 stainless steel inlet and outlet valves
  • Solid ceramic plungers
  • Dual Ball Bearings
  • Patented “high tech” low and high pressure seals

TX Series 63SS – Specifications:
Max. Inlet Pressure:   115 PSI
Max Fluid Temperature: *185° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-9 BSP-F
Shaft Diameter:   945″/24 mm
Pump Dimensions: 8.4″ x 8.3″ x 4.8
Crankcase Oil Capacity:   14.0 oz./.41 liters
Use GP Series 100 Oil

Showing all 5 results

  • TX1506S17SS

    Specifications

    GPM

    PSI

    RPM

    1750

    Ship Weight

    22.3 lbs.

    View Details

    Stainless Brochure

    Download
    TX SERIES – 24 MM SOLID SHAFT

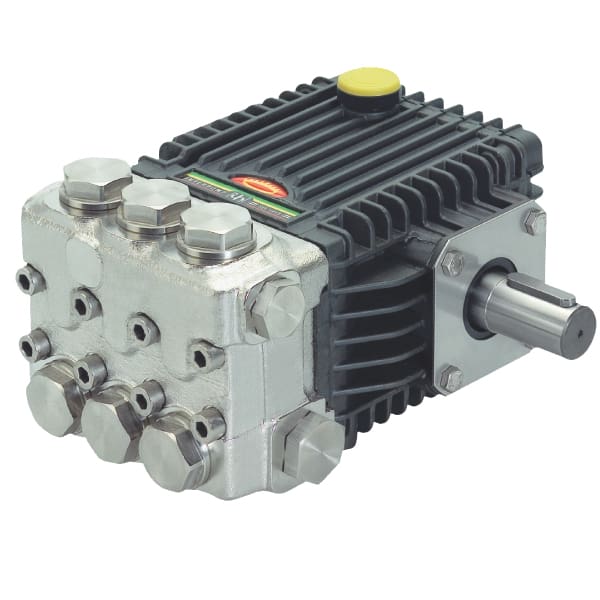

  • TX1510S17SS

    Specifications

    GPM

    PSI

    RPM

    1750

    Ship Weight

    22.3 lbs.

    View Details

    Download Specification

    Download

    Stainless Brochure

    Download
    TX SERIES 63SS
  • TX1512S17SS

    Specifications

    GPM

    PSI

    RPM

    1750

    Ship Weight

    22.3 lbs.

    View Details

    Download Specification

    Download

    Stainless Brochure

    Download
    TX SERIES 63SS
  • TX1810S17SS

    Specifications

    GPM

    PSI

    RPM

    1750

    Ship Weight

    22.3 lbs.

    View Details

    Download Specification

    Download

    Stainless Brochure

    Download
    TX SERIES 63SS
  • TX1812S17SS

    Specifications

    GPM

    PSI

    RPM

    1750

    Ship Weight

    22.3 lbs.

    View Details

    Download Specification

    Download

    Stainless Brochure

    Download
    TX SERIES 63SS
