• Flows from 1.35 GPM to 2.6 GPM
  • Triplex plunger pump
  • Features patented “high tech” packings
  • Patented inlet/outlet valve cage
  • Nickel-plated inlet/outlet valve plugs
  • Nickel-plated forged brass manifold with exclusive lifetime warranty
  • Specially designed to handle rigorous duty cycles, high temperatures and chemicals
  • Ideal for use in carpet cleaning and other high pressure cleaning applications

HTC Series 60HT – Specifications:
Max. Inlet Pressure:   125 PSI
Max. Fluid Temperature:   185° F
Inlet Port Thread:   1/2″-14 BSP-F
Discharge Port Thread:   3/8″-19 BSP-F
Pump Dimensions:   7.8″ x 7.3″ x 5.5″
Crankcase Oil Capacity:   11.8 oz.
Use GP Series 100 Oil

Showing all 5 results

  • HTC1505E345

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    .197 in./5 mm

    HP

    3.5 EBHP

    Ship Weight

    16.0 lbs.

    View Details

    Download Specification

    Download

    Emperor Brochure

    Download
    HTC SERIES 60HT – 5/8 (.625 IN.) HOLLOW SHAFT

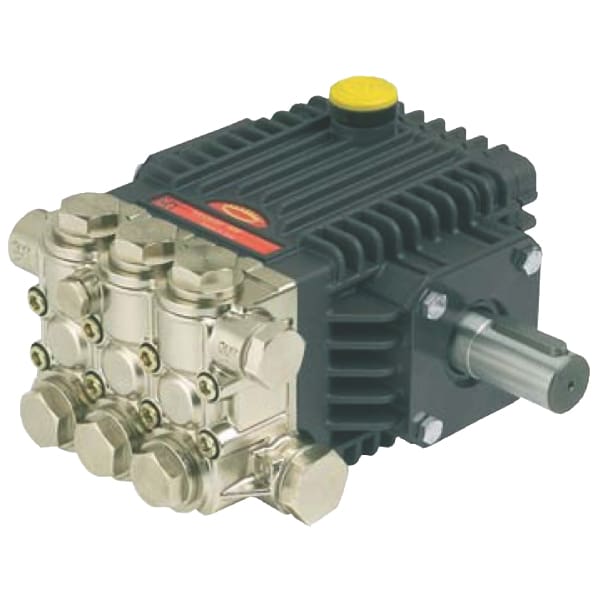

  • HTC1506S17

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .591 in./15 mm

    Stroke

    .236 in./6 mm

    HP

    2.0 HP

    Ship Weight

    16.0 lbs.

    View Details

    Download Specification

    Download

    Emperor Brochure

    Download
    HTC SERIES 60HT – (.945 IN.) 24 MM SOLID SHAFT

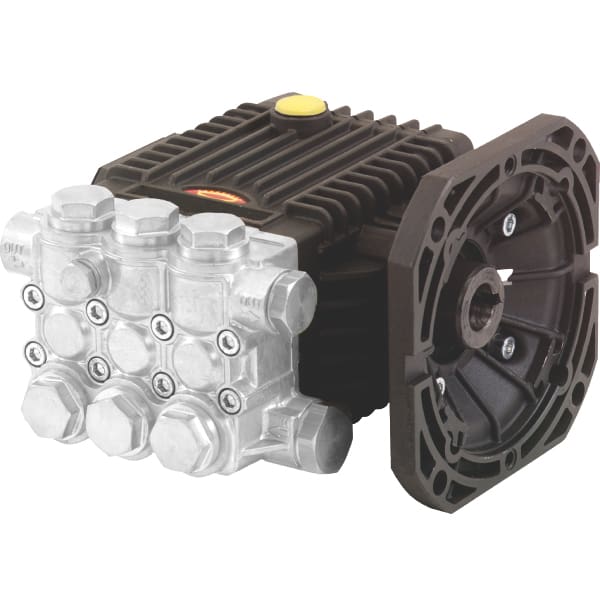

  • HTC1509E175

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .591 in./15 mm

    Stroke

    .370 in./9.4 mm

    HP

    3.5 EBHP

    Ship Weight

    16.0 lbs.

    View Details

    Download Specification

    Download

    Emperor Brochure

    Download
    HTC SERIES 60HT – 5/8 (.625 IN.) HOLLOW SHAFT
  • HTC1509S17

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .591 in./15 mm

    Stroke

    .370 in./9.4 mm

    HP

    3.0 HP

    Ship Weight

    16.0 lbs.

    View Details

    Download Specification

    Download

    Emperor Brochure

    Download
    HTC SERIES 60HT – (.945 IN.) 24 MM SOLID SHAFT
  • HTC1511S17

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .591 in./15 mm

    Stroke

    .453 in./11.5 mm

    HP

    4.0 HP

    Ship Weight

    16.0 lbs.

    View Details

    Download Specification

    Download

    Emperor Brochure

    Download
    HTC SERIES 60HT – (.945 IN.) 24 MM SOLID SHAFT
