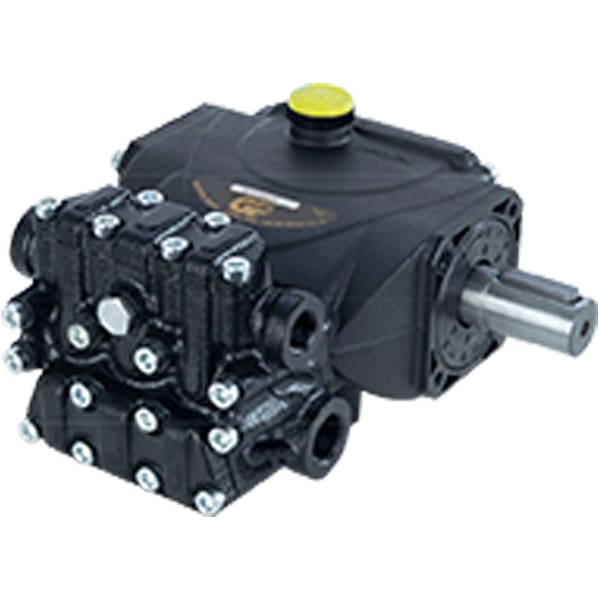

ET Solid Shaft

ET Series – Features: Triplex plunger pumps Nickel-plated cast manifold manufactured like heavy-duty pump line New generation seal package New dust protection chamber Solid ceramic plungers New oversized plunger guide New optimized inlet and outlet valves New oil seal ET Series – Solid Shaft – Specifications:Max. Inlet Pressure:...

Learn More

ET Solid Shaft

ET Series – Features:

Triplex plunger pumps
Nickel-plated cast manifold manufactured like heavy-duty pump line
New generation seal package
New dust protection chamber
Solid ceramic plungers
New oversized plunger guide
New optimized inlet and outlet valves
New oil seal

ET Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 8″ x 7.4″ x 4.7″
Crankcase Oil Capacity: 8.5 oz.
Use GP Series 100 Oil

ET Solid Shaft

ET Series – Features:

Triplex plunger pumps
Nickel-plated cast manifold manufactured like heavy-duty pump line
New generation seal package
New dust protection chamber
Solid ceramic plungers
New oversized plunger guide
New optimized inlet and outlet valves
New oil seal

ET Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 8″ x 7.4″ x 4.7″
Crankcase Oil Capacity: 8.5 oz.
Use GP Series 100 Oil

ET1305S34

Specifications

GPM	1.6
PSI	4450
RPM	3400
Bore	.512 in./13mm
Stroke	0.197 in./5 mm
HP	4.8 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1306S34

Specifications

GPM	1.9
PSI	4450
RPM	3400
Bore	.512 in./13mm
Stroke	0.256 in./6 mm
HP	5.6 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1307S34

Specifications

GPM	2.1
PSI	4450
RPM	3400
Bore	.512 in./13mm
Stroke	0.283 in./7 mm
HP	6.4 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1308S34

Specifications

GPM	2.4
PSI	4450
RPM	3400
Bore	0.512 in./13 mm
Stroke	0.315 in./8 mm
HP	7.2 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1309S34

Specifications

GPM	2.9
PSI	4450
RPM	3400
Bore	.512 in./13mm
Stroke	.394 in./10 mm
HP	8.9 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1310S34

Specifications

GPM	2.9
PSI	4450
RPM	3400
Bore	.512 in./13mm
Stroke	.394 in./10 mm
HP	8.9 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1311S34

Specifications

GPM	3.1
PSI	4450
RPM	3400
Bore	0.512 in./13 mm
Stroke	0.433 in./11 mm
HP	9.7 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1312S34

Specifications

GPM	3.4
PSI	4450
RPM	3400
Bore	.512 in./13mm
Stroke	.453 in./11.5 mm
HP	10.5 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 13 MM BORE, 3400 RPM

ET1505S34

Specifications

GPM	2.1
PSI	2610
RPM	3400
Bore	.591 in./15 mm
Stroke	.197 in./5 mm
HP	3.7 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET1506S34

Specifications

GPM	2.6
PSI	2610
RPM	3400
Bore	.591 in./15 mm
Stroke	0.283 in./7 mm
HP	5.6 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET1507S34

Specifications

GPM	2.6
PSI	2610
RPM	3400
Bore	.591 in./15 mm
Stroke	0.256 in./6 mm
HP	4.7 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET1508S34

Specifications

GPM	3.4
PSI	2610
RPM	3400
Bore	0.591 in./15 mm
Stroke	0.315 in./8 mm
HP	6.1 EBHP
Ship Weight	11 lbs.

Download Specifications ET Pump Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET SERIES – 24 MM SOLID SHAFT, 15 MM BORE, 3400 RPM

ET1509S17

Specifications

GPM	2.1 GPM
PSI	2610
RPM	1750
Bore	.591 in./15 mm
Stroke	.370 in./9.4 mm
HP	3.7 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM

ET1511S17

Specifications

GPM	2.6
PSI	2610
RPM	1750
Bore	.591 in./15 mm
Stroke	.453 in./11.5 mm
HP	4.7 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM

ET1512S17

Specifications

GPM	2.9
PSI	2610
RPM	1750
Bore	.591 in./15 mm
Stroke	.472 in./12 mm
HP	5.1 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM

ET1807S17

Specifications

GPM	2.4
PSI	2320
RPM	1750
Bore	0.708 in./18 mm
Stroke	0.283 in./7 mm
HP	3.7 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM

ET1809S17

Specifications

GPM	3.2
PSI	2320
RPM	1750
Bore	.709 in./18 mm
Stroke	.370 in./9.4 mm
HP	5.0 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM

ET1810S17

Specifications

GPM	3.4
PSI	2320
RPM	1750
Bore	.709 in./18 mm
Stroke	.394 in./10 mm
HP	5.4 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM

ET1811S17

Specifications

GPM	3.7
PSI	2320
RPM	1750
Bore	0.708 in./18 mm
Stroke	0.433 in./11 mm
HP	5.9 EBHP
Ship Weight	11.0 lbs.

Download Specifications ET Pumps Brochure

Details

ET SERIES - 24 MM SOLID SHAFT, 1750 RPM

ET SERIES – 24 MM SOLID SHAFT, 1750 RPM
