EZ Solid Shaft

EZ Series – Features: Triplex plunger pumps Forged brass manifold with an exclusive lifetime warranty Solid ceramic plunger design Die-cast, anodized aluminum oil bath crankcase Premium roller bearings Flex coupling and bell housing available for direct drive Unitized stainless steel inlet and discharge valves EZ Series –...

Learn More

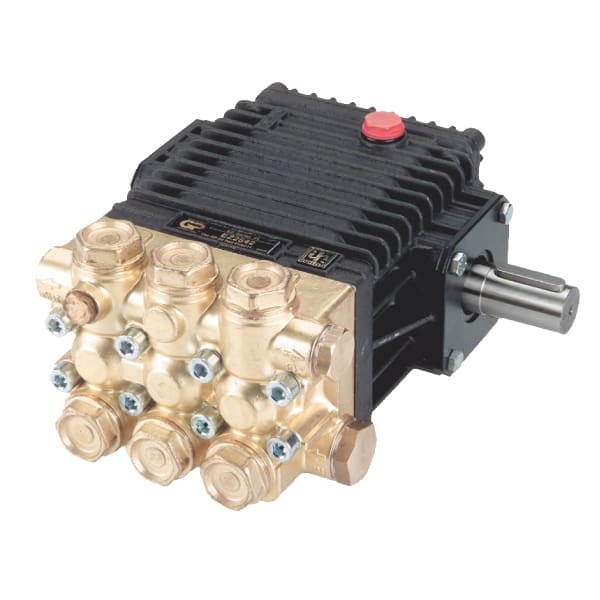

EZ Solid Shaft

EZ Series – Features:

Triplex plunger pumps
Forged brass manifold with an exclusive lifetime warranty
Solid ceramic plunger design
Die-cast, anodized aluminum oil bath crankcase
Premium roller bearings
Flex coupling and bell housing available for direct drive
Unitized stainless steel inlet and discharge valves

EZ Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 8.8″ x 8.8″ x 6.3″
Crankcase Oil Capacity: 14.0 oz.
Use GP Series 100 Oil

EZ Solid Shaft

EZ Series – Features:

Triplex plunger pumps
Forged brass manifold with an exclusive lifetime warranty
Solid ceramic plunger design
Die-cast, anodized aluminum oil bath crankcase
Premium roller bearings
Flex coupling and bell housing available for direct drive
Unitized stainless steel inlet and discharge valves

EZ Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 8.8″ x 8.8″ x 6.3″
Crankcase Oil Capacity: 14.0 oz.
Use GP Series 100 Oil

EZ2530SUI

Specifications

GPM	3.0
PSI	2500
RPM	1750
Bore	.591 in./15 mm
Stroke	.512 in./13 mm
HP	5.1 EBHP
Ship Weight	18.0 lbs.

Details

EZ SERIES 44 - 24 MM SOLID SHAFT, PUMP INCLUDES BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

EZ SERIES 44 – 24 MM SOLID SHAFT, PUMP INCLUDES BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

EZ2536S

Specifications

GPM	3.6
PSI	2500
RPM	1750
Bore	0.708 in./18 mm
Stroke	.453 in./11.5 mm
HP	6.2 EBHP
Ship Weight	18.0 lbs.

Download Specifications

Details

EZ SERIES 44 - 24 MM SOLID SHAFT

EZ SERIES 44 – 24 MM SOLID SHAFT

EZ2542S

Specifications

GPM	4.2
PSI	2500
RPM	1750
Bore	0.708 in./18 mm
Stroke	.512 in./13 mm
HP	7.2 EBHP
Ship Weight	18.0 lbs.

Download Specifications

Details

EZ SERIES 44 - 24 MM SOLID SHAFT

EZ SERIES 44 – 24 MM SOLID SHAFT

EZ2542SN

Specifications

GPM	4.2
PSI	2650
RPM	1750
Bore	0.708 in./18 mm
Stroke	.512 in./13 mm
HP	7.6 EBHP
Ship Weight	18.0 lbs.

Details

EZ Series 44 - 24 mm solid shaft, nickel-plated.

EZ Series 44 – 24 mm solid shaft, nickel-plated.

EZ2545S

Specifications

GPM	4.6
PSI	2500
RPM	3400
Bore	.591 in./15 mm
Stroke	0.433 in./11 mm
HP	7.9 EBHP
Ship Weight	18.0 lbs.

Download Specifications

Details

EZ SERIES 44 - 24 MM SOLID SHAFT

EZ SERIES 44 – 24 MM SOLID SHAFT

EZ2555S

Specifications

GPM	5.5
PSI	2500
RPM	3400
Bore	.591 in./15 mm
Stroke	.512 in./13 mm
HP	9.4 EBHP
Ship Weight	18.0 lbs.

Download Specifications

Details

EZ SERIES 44 - 24 MM SOLID SHAFT

EZ SERIES 44 – 24 MM SOLID SHAFT

EZ3036SN

Specifications

GPM	3.6
PSI	3000
RPM	1750
Bore	0.708 in./18 mm
Stroke	0.433 in./11 mm
HP	7.4 EBHP
Ship Weight	18.0 lbs.

Details

EZ Series 44 - 24 mm solid shaft, nickel-plated.

EZ Series 44 – 24 mm solid shaft, nickel-plated.

EZ3040S

Specifications

GPM	4.0
PSI	2500
RPM	3400
Bore	.591 in./15 mm
Stroke	.374 in./9.5 mm
HP	8.2 EBHP
Ship Weight	18.0 lbs.

Download Specifications

Details

EZ SERIES 44 - 24 MM SOLID SHAFT

EZ SERIES 44 – 24 MM SOLID SHAFT

EZ3042S

Specifications

GPM	4.2
PSI	3000
RPM	1750
Bore	0.708 in./18 mm
Stroke	.512 in./13 mm
HP	8.6 EBHP
Ship Weight	18.0 lbs.

Download Specifications

Details

EZ SERIES 44 - 24 MM SOLID SHAFT, PREMIUM ROLLER BEARINGS

EZ SERIES 44 – 24 MM SOLID SHAFT, PREMIUM ROLLER BEARINGS
