HTS Series 47HT

Flows from 4.0 GPM to 5.6 GPM Triplex plunger pump Features patented “high tech” packings Patented inlet/outlet valve cage Nickel-plated inlet/outlet valve plugs Nickel-plated forged brass manifold with exclusive lifetime warranty Specially designed to handle rigorous duty cycles, high temperatures and chemicals Ideal for use in...

Learn More

HTS Series 47HT

Flows from 4.0 GPM to 5.6 GPM
Triplex plunger pump
Features patented “high tech” packings
Patented inlet/outlet valve cage
Nickel-plated inlet/outlet valve plugs
Nickel-plated forged brass manifold with exclusive lifetime warranty
Specially designed to handle rigorous duty cycles, high temperatures and chemicals
Ideal for use in carpet cleaning and other high pressure cleaning applications

HTS Series 47HT – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 185° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 12.2″x9.2″x9.9″
Dimensions With Rails: 12.4″x10″x6.9″
Crankcase Oil Capacity: 40.6 oz.
Use GP Series 100 Oil

HTS Series 47HT

Flows from 4.0 GPM to 5.6 GPM
Triplex plunger pump
Features patented “high tech” packings
Patented inlet/outlet valve cage
Nickel-plated inlet/outlet valve plugs
Nickel-plated forged brass manifold with exclusive lifetime warranty
Specially designed to handle rigorous duty cycles, high temperatures and chemicals
Ideal for use in carpet cleaning and other high pressure cleaning applications

HTS Series 47HT – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 185° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 12.2″x9.2″x9.9″
Dimensions With Rails: 12.4″x10″x6.9″
Crankcase Oil Capacity: 40.6 oz.
Use GP Series 100 Oil

HTS2016S

Specifications

GPM	5.6
PSI	3000
RPM	1450
Bore	0.787 in./20 mm
Stroke	.630 in./16 mm
HP	11.5 EBHP
Ship Weight	32.0 lbs.

Download Specification Emperor Brochure

Details

HTS SERIES 47HT - 22 MM SOLID SHAFT

HTS SERIES 47HT – 22 MM SOLID SHAFT

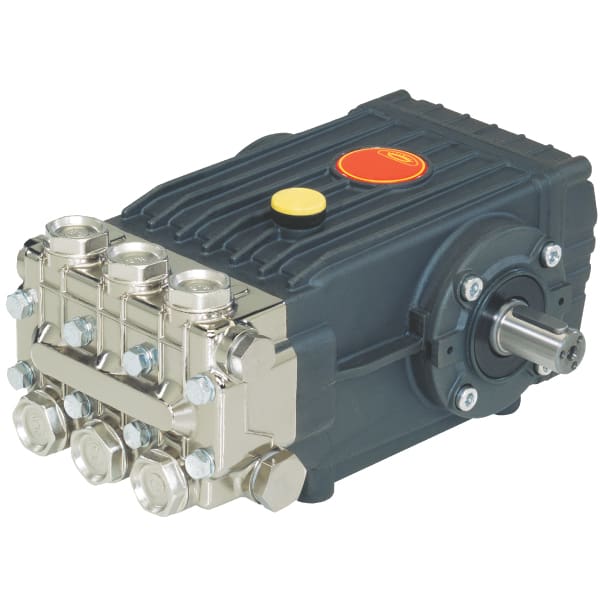

HTS2210S

Specifications

GPM	4.0
PSI	2300
RPM	1450
Bore	.866 in./22 mm
Stroke	.394 in./10 mm
HP	6.3 EBHP
Ship Weight	32.0 lbs.

Download Specification Emperor Brochure

Details

66 SERIES - TSF - HIGH FLOW - 24 MM SOLID SHAFT

66 SERIES – TSF – HIGH FLOW – 24 MM SOLID SHAFT

HTS2212S

Specifications

GPM	4.75
PSI	2300
RPM	1450
Bore	.866 in./22 mm
Stroke	.472 in./12 mm
HP	7.5 EBHP
Ship Weight	32.0 lbs.

Download Specification Emperor Brochure

Details

HTS SERIES 47HT - 22 MM SOLID SHAFT

HTS SERIES 47HT – 22 MM SOLID SHAFT

HTS2215S

Specifications

GPM	5.0
PSI	2300
RPM	1200
Bore	.866 in./22 mm
Stroke	.591 in./15 mm
HP	7.5 HP
Ship Weight	32.0 lbs.

Download Specifications Emperor Brochure

Details

66 SERIES - TSF - HIGH FLOW - 24 MM SOLID SHAFT

66 SERIES – TSF – HIGH FLOW – 24 MM SOLID SHAFT
