E2/EP Series 58

Flows from 2.1 GPM to 4.2 GPM Triplex plunger pump New Forged brass manifold , increases Working pressure to 4,000 PSI New plunger guide bushing (patent pending) Solid ceramic plungers with dual guide system New dual diameter plunger guide New optimized outlet valves New dual lip oil...

Learn More

E2/EP Series 58

Flows from 2.1 GPM to 4.2 GPM
Triplex plunger pump
New Forged brass manifold , increases
Working pressure to 4,000 PSI
New plunger guide bushing (patent pending)
Solid ceramic plungers with dual guide system
New dual diameter plunger guide
New optimized outlet valves
New dual lip oil seal

E2/EP Series 58

Flows from 2.1 GPM to 4.2 GPM
Triplex plunger pump
New Forged brass manifold , increases
Working pressure to 4,000 PSI
New plunger guide bushing (patent pending)
Solid ceramic plungers with dual guide system
New dual diameter plunger guide
New optimized outlet valves
New dual lip oil seal

EP1306G8

Specifications

GPM	2.1
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	.236 in./6 mm
HP	8.6 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1306S34

Specifications

GPM	2.1
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	.256 in./6.5 mm
HP	5.8 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1308G8

Specifications

GPM	2.6
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	0.315 in./8 mm
HP	10.7 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1308S34

Specifications

GPM	2.6
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	.394 in./10 mm
HP	7.1 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1309G8

Specifications

GPM	2.9
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	.354 in./9 mm
HP	11.9 GHP
Ship Weight	11 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1310G8

Specifications

GPM	3.2
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	0.394 in./10 mm
HP	13.2 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1310S34

Specifications

GPM	3.2
PSI	4000
RPM	3400
Bore	0.512 in./13 mm
Stroke	0.394 in./10 mm
HP	8.8 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1311G8

Specifications

GPM	3.4
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	0.433 in./11 mm
HP	14.0 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1311S34

Specifications

GPM	3.4
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	0.433 in./11 mm
HP	9.3 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1313G8

Specifications

GPM	4.0
PSI	4000
RPM	3400
Bore	0.512 in./13 mm
Stroke	.512 in./13 mm
HP	16.4 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

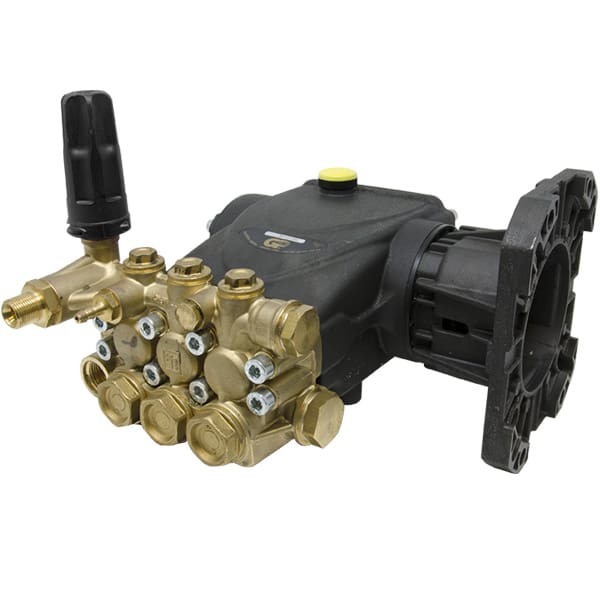

EP1313G8U/IF

Specifications

GPM	4.0
PSI	4200
RPM	3400
Bore	.512 in./13mm
Stroke	.512 in./13 mm
HP	11.5 EBHP
Ship Weight	15.9 lbs.

Download Specifications

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES, Built-in unloader and injector

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES, Built-in unloader and injector

EP1313S17

Specifications

GPM	2.4
PSI	4000
RPM	1750
Bore	0.512 in./13 mm
Stroke	.512 in./13 mm
HP	6.5 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1313S34

Specifications

GPM	4.0
PSI	4000
RPM	3400
Bore	.512 in./13mm
Stroke	.512 in./13 mm
HP	10.9 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1505G6

Specifications

GPM	2.1
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	.197 in./5 mm
HP	6.6 GHP
Ship Weight	15.8 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1505S34

Specifications

GPM	2.1
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	.197 in./5 mm
HP	4.4 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1506G6

Specifications

GPM	2.9
PSI	3045
RPM	3400
Bore	0.591 in./15 mm
Stroke	.236 in./6 mm
HP	9.0 GHP
Ship Weight	15.8 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1506G8

Specifications

GPM	2.9
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	.236 in./6 mm
HP	9.0 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1506S34

Specifications

GPM	2.9
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	.256 in./6.5 mm
HP	6.0 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1508G6

Specifications

GPM	3.4
PSI	3045
RPM	3400
Stroke	0.315 in./8 mm
HP	10.9 GHP
Ship Weight	15.8 lbs.
Bore	.591 in./15 mm

Download Specifications Download Specifications

Details

EP SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1508G8

Specifications

GPM	3.4
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	0.315 in./8 mm
HP	10.6 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1508S34

Specifications

GPM	3.4
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	0.315 in./8 mm
HP	7.1 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1509G8

Specifications

GPM
3.7

PSI
3000

Bore
0.591 in./15 mm

Stroke
.354 in./9 mm

HP
11.4 GHP

Ship Weight
15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

Details

EP1510E17

Specifications

GPM	2.4
PSI	3045
RPM	1750
Bore	.591 in./15 mm
Stroke	.394 in./10 mm
HP	5.0 EBHP
Ship Weight	15.8 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1-1/8 (1.125)" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP SERIES – 1-1/8 (1.125)” HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP1510G8

Specifications

GPM	4.2
PSI	3000
RPM	3400
Bore	.591 in./15 mm
Stroke	0.394 in./10 mm
HP	13.0 GHP
Ship Weight	15.9 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES

EP1510S17

Specifications

GPM	2.4
PSI	3045
RPM	1750
Bore	.591 in./15 mm
Stroke	.394 in./10 mm
HP	5.0 EBHP
Ship Weight	15.4 lbs.

Download Specifications ET Pump Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1510S34

Specifications

GPM	4.2
PSI	3045
RPM	3400
Bore	.591 in./15 mm
Stroke	.394 in./10 mm
HP	8.8 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1512E17

Specifications

GPM	2.9
PSI	3045
RPM	1750
Bore	.591 in./15 mm
Stroke	.472 in./12 mm
HP	6.0 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1-1/8 (1.125)" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP SERIES – 1-1/8 (1.125)” HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP1512S17

Specifications

GPM	2.9
PSI	3045
RPM	1750
Bore	.591 in./15 mm
Stroke	.472 in./12 mm
HP	6.0 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1513S17

Specifications

GPM	3.2
PSI	3045
RPM	1750
Bore	.591 in./15 mm
Stroke	.512 in./13 mm
HP	6.6 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1810E17

Specifications

GPM	3.4
PSI	2500
RPM	1750
Bore	.709 in./18 mm
Stroke	.394 in./10 mm
HP	5.8 EBHP
Ship Weight	15.8 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1-1/8 (1.125)" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP SERIES – 1-1/8 (1.125)” HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP1810S17

Specifications

GPM	3.4
PSI	2500
RPM	1750
Bore	0.709 in./18 mm
Stroke	.394 in./10 mm
HP	5.8 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1811E17

Specifications

GPM	3.7
PSI	2500
RPM	1750
Bore	.709 in./18 mm
Stroke	0.433 in./11 mm
HP	6.3 EBHP
Ship Weight	15.8 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1-1/8 (1.125)" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP SERIES – 1-1/8 (1.125)” HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP1811S17

Specifications

GPM	3.7
PSI	2500
RPM	1750
Bore	.709 in./18 mm
Stroke	0.433 in./11 mm
HP	6.3 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1812E17

Specifications

GPM	4.0
PSI	2500
RPM	1750
Bore	.709 in./18 mm
Stroke	.472 in./12 mm
HP	6.8 EBHP
Ship Weight	15.8 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 1-1/8 (1.125)" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP SERIES – 1-1/8 (1.125)” HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS

EP1812E17UL

Specifications

GPM	4.0
PSI	2500
RPM	1750
Bore	.709 in./18 mm
Stroke	.472 in./12 mm
HP	6.6 EBHP
Ship Weight	15.4 lbs.

Download Specifications

Details

EP SERIES - 1-1/8 (1.125)" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS, WITH BUILT-IN UNLOADER

EP SERIES – 1-1/8 (1.125)” HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO ELECTRIC MOTORS, WITH BUILT-IN UNLOADER

EP1812S17

Specifications

GPM	4.0
PSI	2500
RPM	1750
Bore	0.709 in./18 mm
Stroke	.472 in./12 mm
HP	6.8 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

EP1813S17

Specifications

GPM	4.2
PSI	2900
RPM	1750
Bore	.709 in./18 mm
Stroke	.512 in./13 mm
HP	8.3 EBHP
Ship Weight	15.4 lbs.

Download Specifications EP Pumps Brochure

Details

EP SERIES - 24 MM SOLID SHAFT

EP SERIES – 24 MM SOLID SHAFT

Interested in one of our Products?

Contact us for more information, or log in to request a quote.

‹ › ×

HTML Snippets Powered By : XYZScripts.com
