T Series 48

Flows from 9.0 GPM to 11.0 GPM Sixplex plunger pump, solid shaft Forged brass manifold with an exclusive lifetime warranty Dual manifolds utilizing a common crankcase for efficient performance Perfect for high flow applications Unitized Stainless Steel inlet and discharge valves Solid ceramic plungers with...

Learn More

T Series 48

Flows from 9.0 GPM to 11.0 GPM
Sixplex plunger pump, solid shaft
Forged brass manifold with an exclusive lifetime warranty
Dual manifolds utilizing a common crankcase for efficient performance
Perfect for high flow applications
Unitized Stainless Steel inlet and discharge valves
Solid ceramic plungers with continuously lubricated packings

48 Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread Dual: 3/4″-14 BSP-F
Discharge Port Thread: Dual 3/8″-19 BSP-F
Shaft Diameter: 1.26 in./32 mm
Pump Dimensions: 16.1″ x 11.2″ x 7.9″
Crankcase Oil Capacity 54.0 oz.
Use GP Series 100 Oil

T Series 48

Flows from 9.0 GPM to 11.0 GPM
Sixplex plunger pump, solid shaft
Forged brass manifold with an exclusive lifetime warranty
Dual manifolds utilizing a common crankcase for efficient performance
Perfect for high flow applications
Unitized Stainless Steel inlet and discharge valves
Solid ceramic plungers with continuously lubricated packings

48 Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread Dual: 3/4″-14 BSP-F
Discharge Port Thread: Dual 3/8″-19 BSP-F
Shaft Diameter: 1.26 in./32 mm
Pump Dimensions: 16.1″ x 11.2″ x 7.9″
Crankcase Oil Capacity 54.0 oz.
Use GP Series 100 Oil

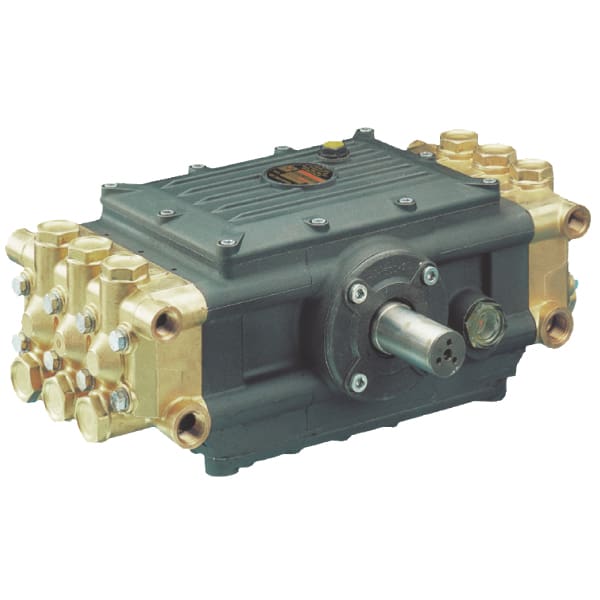

T1631

Specifications

GPM	10.0
PSI	2500
RPM	1080
Bore	.866 in./22 mm
Stroke	.630 in./16 mm 11.5 HP
HP	15.1 EBHP
Ship Weight	61.0 lbs.

Download Specification

Details

48 SERIES - SOLID SHAFT - 32 MM SOLID SHAFT

48 SERIES – SOLID SHAFT – 32 MM SOLID SHAFT

T2031

Specifications

GPM	11.0
PSI	2000
RPM	1450
Bore	.787 in./20 mm
Stroke	.630 in./16 mm
HP	17.1 EBHP
Ship Weight	61 lbs.

Download Specifications

Details

48 SERIES - SOLID SHAFT - 32 MM SOLID SHAFT

48 SERIES – SOLID SHAFT – 32 MM SOLID SHAFT

T2031

Specifications

GPM	9.0
PSI	3000
RPM	1140
Bore	.787 in./20 mm
Stroke	.630 in./16 mm
HP	18.5 EBHP
Ship Weight	61.0 lbs.

Download Specification

Details

48 SERIES - SOLID SHAFT - 32 MM SOLID SHAFT

48 SERIES – SOLID SHAFT – 32 MM SOLID SHAFT
