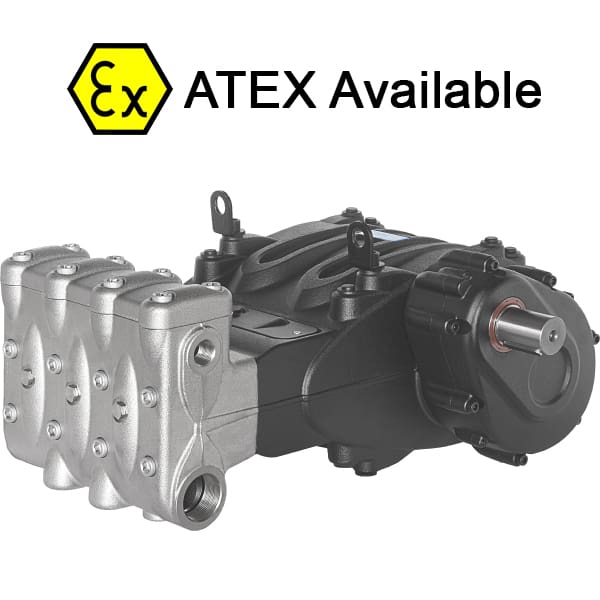

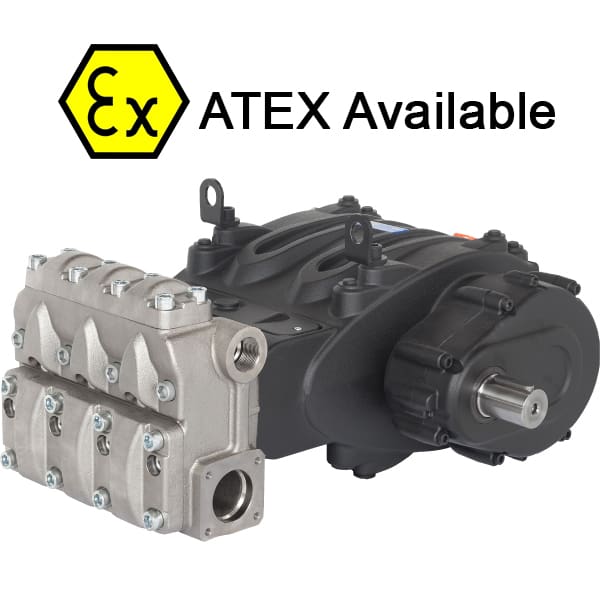

MW/MWS

• Flows from 36.9 GPM to 105.4 GPM
• Low-high pressure packing design with integrated cooling system
• Vertically fitted suction/delivery valves
• Splash lubrication
• Gear ratios: 1500 RPM=1.876:1, 1800 RPM=2.238:1, 2200 RPM=2.722:1, 2600 RPM=3.25:1
• Includes drain/priming valve kit
• F2152 kit allows for easy adaptation to MSS mounting pattern
• SAE-C hydraulic shaft/flange option available
• Nickel-plated cast iron manifold
• ATEX Available

MW/MWS Series – Specifications:
Max. Inlet Pressure: 45 PSI
Max. Fluid Temperature: *140° F
Inlet Port Thread: See specification sheet
Discharge Port Thread: See specification sheet
Shaft Diameter: 1.969″/50 mm
Stroke: 2.756″/70 mm
Pump Dimensions: 29.5″ x 23.0″ x 14.5″
Crankcase Oil Capacity: 304.3 oz./9 liters
Use GP Series 220 Oil

* Please consult technical manual or GP Sales Representative for Temperature/Inlet Pressure information
