T Series 69

  • Flows from 7.9 GPM to 12.0 GPM
  • Triplex plunger pump, solid shaft
  • The industry’s choice for high flow applications
  • Forged brass manifold with an exclusive lifetime warranty (TS1531 & TS1041)
  • T41 has an aluminum manifold
  • Large-capacity, die-cast anodized aluminum, oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy-duty tapered roller bearings
  • Unitized SS inlet and discharge valves
  • Solid ceramic plungers with continuously lubricated packings

69 Series – Solid Shaft – Specifications:
Max. Inlet Pressure:   125 PSI
Max. Fluid Temperature:   165° F
Inlet Port Thread: 3/4″-14 BSP-F
Discharge Port Thread:    3/8″-19 BSP-F
Shaft Diameter: 1.378 in./35 mm
Pump Dimensions: 12.9″ x 11.9″ x 7.3″
Crankcase Oil Capacity: 50.7 oz.
Use GP Series 8090 Oil

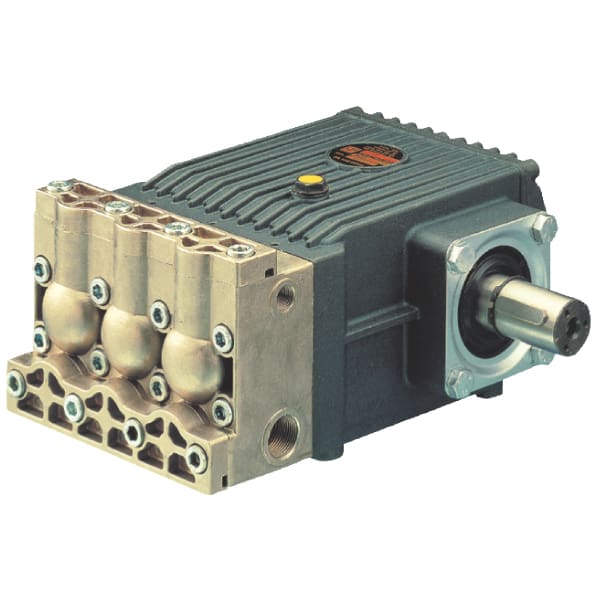

  • T41

    Specifications

    GPM

    12.0

    PSI

    900

    RPM

    650

    Bore

    1.417 in./36 mm

    Stroke

    0.945 in./24 mm

    HP

    7.4 EBHP

    69 SERIES - 35 MM SOLID SHAFT

    69 SERIES – 35 MM SOLID SHAFT

    Details
  • TS1041

    Specifications

    GPM

    8.0

    PSI

    1600

    RPM

    1450

    Bore

    .787 in./20 mm

    Stroke

    0.866 in./22 mm

    HP

    8.8 EBHP

    Ship Weight

    46.0 lbs.

    69 SERIES - 35 MM SOLID SHAFT

    69 SERIES – 35 MM SOLID SHAFT

    Details

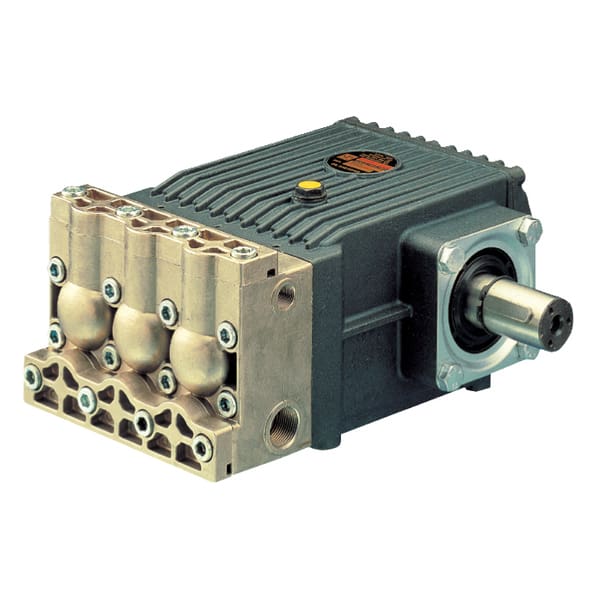

  • TS1531

    Specifications

    GPM

    7.92

    PSI

    2175

    RPM

    1450

    Bore

    .787 in./20 mm

    Stroke

    0.866 in./22 mm

    HP

    11.8 EBHP

    Ship Weight

    46.0 lbs.

    69 SERIES - 35 MM SOLID SHAFT

    69 SERIES – 35 MM SOLID SHAFT

    Details
