51 Series Gas

For Gasoline Engines
51 Series – Features:

  • Triplex plunger pumps
  • Forged brass manifold with an exclusive lifetime warranty
  • Die-cast, anodized aluminum oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized, stainless steel inlet and outlet valves
  • Ideal for all general cleaning and misting applications

51 Series – Hollow Shaft – Electric – Specifications:
Max. Inlet Pressure:   125 PSI
Max. Fluid Temperature:   165° F
Inlet Port Thread:   3/8″-19 BSP-F
Discharge Port Thread:   1/4″-19 BSP-F
Shaft Diameter:  3/4 (.750) in.
Crankcase Oil Capacity:   11.2 oz.
Use GP Series 100 Oil

Default
9

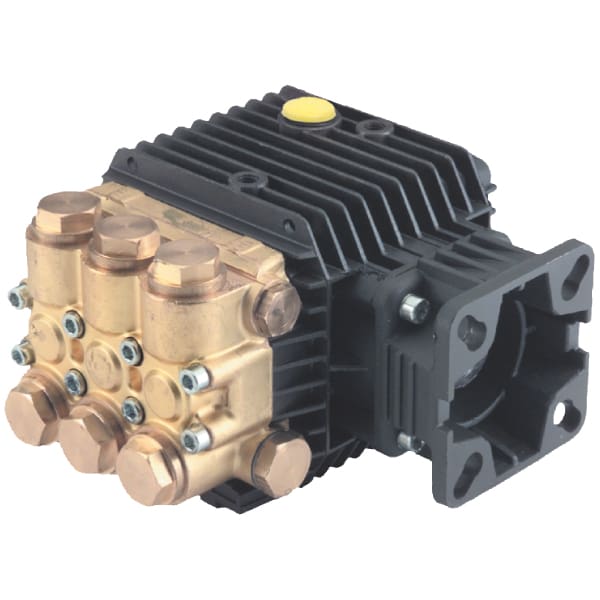

  • TP2520J34

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .197 in./5 mm
    HP

    4.9 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

  • TP2520J34UIL

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .197 in./5 mm
    HP

    4.9 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    Details

  • TP2526J34

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .260 in./6.6 mm
    HP

    6.7 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

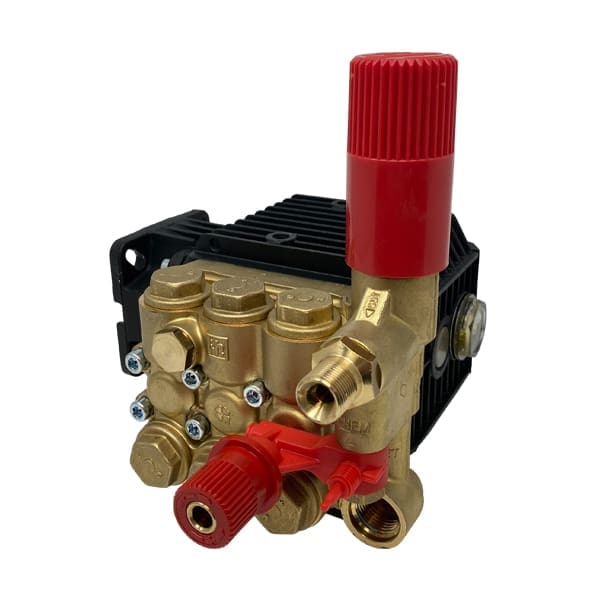

  • TP2526J34UIL

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .260 in./6.6 mm
    HP

    7.2 GBF
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    Details

  • TP2530J34

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .283 in./7.2 mm
    HP

    7.4 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

  • TP2530J34UIL

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .283 in./7.2 mm
    HP

    8.0 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    Details

  • TP2533J34

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    0.315 in./8 mm
    HP

    8.5 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

  • TP2533J34UIL

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    0.315 in./8 mm
    HP

    8.5 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A), WITH BUILT-IN UNLOADER AND DOWNSTREAM INJECTOR

    Details

  • TT1540GBF

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .370 in./9.4 mm
    HP

    6.2 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

  • TT2028GBF

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .260 in./6.6 mm
    HP

    5.8 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

  • TT2035GBF

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    0.315 in./8 mm
    HP

    7.2 GBF
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

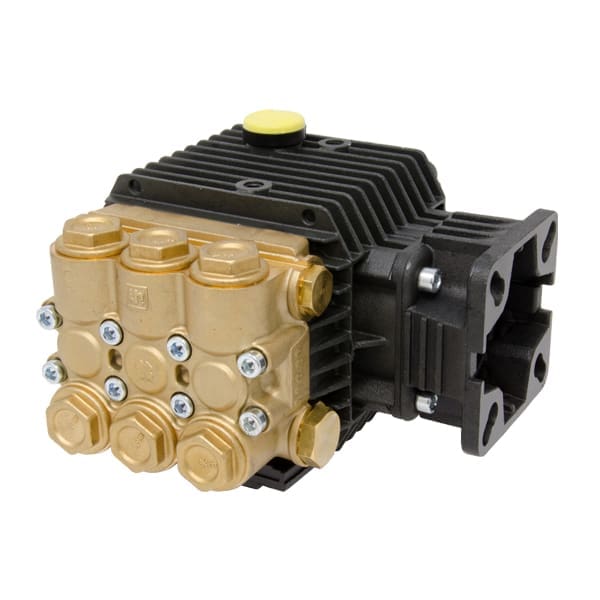

  • TT9061GBF

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .197 in./5 mm
    HP

    3.3 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details

  • TT9071GBF

    Specifications

    GPM

    PSI

    RPM

    3400
    Bore

    .591 in./15 mm
    Stroke

    .260 in./6.6 mm
    HP

    4.3 GHP
    Ship Weight

    11.4 lbs.
    Download Specifications
    Details
    51 SERIES - 3/4" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    51 SERIES – 3/4″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609A)

    Details
