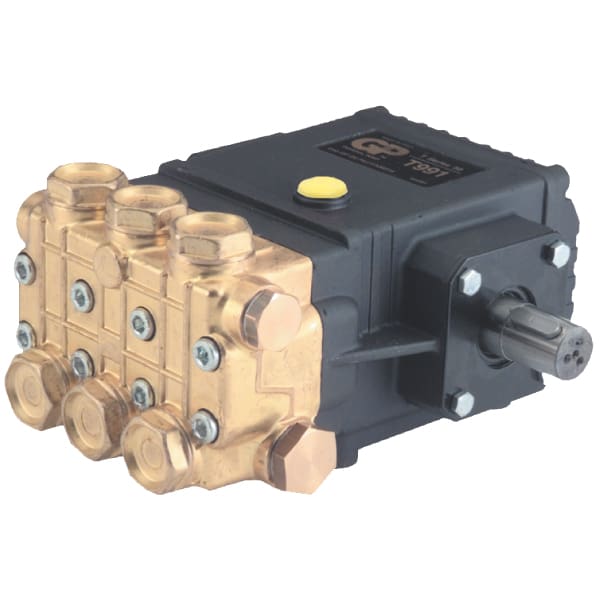

T Series 50

Flows from 3.5 GPM to 4.0 GPM Forged brass manifold with an exclusive lifetime warranty Die-cast, anodized aluminum, oil-bath crankcase Solid ceramic plungers with continuously lubricated packings The original Interpump unitized stainless steel K01 inlet and outlet valves Standard 24 mm solid shaft for...

Learn More

T Series 50

Flows from 3.5 GPM to 4.0 GPM
Forged brass manifold with an exclusive lifetime warranty
Die-cast, anodized aluminum, oil-bath crankcase
Solid ceramic plungers with continuously lubricated packings
The original Interpump unitized stainless steel K01 inlet and outlet valves
Standard 24 mm solid shaft for pulley mounting
Flex coupling and bell housing available for direct drive
Ideal for all general cleaning/washing applications
Also available in “L” left-handed and aluminum manifold versions

50 Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 9.3″x 8.3″x 5.4″
Crankcase Oil Capacity: 15.2 oz.
Use GP Series 100 Oil

T Series 50

Flows from 3.5 GPM to 4.0 GPM
Forged brass manifold with an exclusive lifetime warranty
Die-cast, anodized aluminum, oil-bath crankcase
Solid ceramic plungers with continuously lubricated packings
The original Interpump unitized stainless steel K01 inlet and outlet valves
Standard 24 mm solid shaft for pulley mounting
Flex coupling and bell housing available for direct drive
Ideal for all general cleaning/washing applications
Also available in “L” left-handed and aluminum manifold versions

50 Series – Solid Shaft – Specifications:
Max. Inlet Pressure: 125 PSI
Max. Fluid Temperature: 165° F
Inlet Port Thread: 1/2″-14 BSP-F
Discharge Port Thread: 3/8″-19 BSP-F
Shaft Diameter: .945 in./24 mm
Pump Dimensions: 9.3″x 8.3″x 5.4″
Crankcase Oil Capacity: 15.2 oz.
Use GP Series 100 Oil

100648

Specifications

GPM	3.5
PSI	1500
RPM	1450
Bore	.787 in./20 mm
Stroke	.394 in./10 mm
HP	3.6 EBHP
Ship Weight	19 lbs.

Download Specifications

Details

50 SERIES - 24 MM SOLID SHAFT, T991 WITH TEFLON PACKINGS

50 SERIES – 24 MM SOLID SHAFT, T991 WITH TEFLON PACKINGS

100656

Specifications

GPM	3.5
PSI	1500
RPM	1750
Bore	.787 in./20 mm
Stroke	0.335 in./8 mm
HP	3.6 EBHP
Ship Weight	19.0 lbs.

Download Specification

Details

50 SERIES - 24 MM SOLID SHAFT, T9951 WITH TEFLON PACKINGS

50 SERIES – 24 MM SOLID SHAFT, T9951 WITH TEFLON PACKINGS

T991

Specifications

GPM	4.0
PSI	1100
RPM	1750
Bore	.787 in./20 mm
Stroke	.394 in./10 mm
HP	3.0 EBHP
Ship Weight	19 lbs.
Drive Type	Solid Shaft

Download Specifications

Details

50 SERIES - 24 MM SOLID SHAFT

50 SERIES – 24 MM SOLID SHAFT

T991

Specifications

GPM	3.5
PSI	1500
RPM	1450
Bore	.787 in./20 mm
Stroke	.394 in./10 mm
HP	3.6 EBHP
Ship Weight	19.0 lbs.

Download Specification

Details

50 SERIES - 24 MM SOLID SHAFT

50 SERIES – 24 MM SOLID SHAFT

T991GR

Specifications

GPM	3.5
PSI	1500
RPM	1750
Bore	.787 in./20 mm
Stroke	.394 in./10 mm
HP	5.4 EBHP
Ship Weight	24.0 lbs.

Download Specification YGR0750 ZGR0750

Details

50 SERIES - 24 MM SOLID SHAFT, WITH GEAR REDUCER

50 SERIES – 24 MM SOLID SHAFT, WITH GEAR REDUCER

T9951

Specifications

GPM	3.5
PSI	1500
RPM	1750
Bore	.787 in./20 mm
Stroke	.335 in./8.5 mm
HP	3.6 EBHP
Ship Weight	19.0 lbs.

Download Specification

Details

50 SERIES - 24 MM SOLID SHAFT

50 SERIES – 24 MM SOLID SHAFT

T9971

Specifications

GPM	4.0
PSI	2000
RPM	1750
Bore	.787 in./20 mm
Stroke	.394 in./10 mm
HP	5.5 EBHP
Ship Weight	19.0 lbs.

Download Specification

Details

50 SERIES - 24 MM SOLID SHAFT

50 SERIES – 24 MM SOLID SHAFT

T9971GR

Specifications

GPM	3.5
PSI	1500
RPM	3400
Bore	.787 in./20 mm
Stroke	.394 in./10 mm
HP	7.2 EBHP
Ship Weight	24.0 lbs.

Download Specification YGR0750 ZGR0750

Details

50 SERIES - 24 MM SOLID SHAFT, WITH GEAR REDUCER

50 SERIES – 24 MM SOLID SHAFT, WITH GEAR REDUCER

TT9351

Specifications

GPM	3.5
PSI	2500
RPM	3400
Bore	.591 in./15 mm
Stroke	0.335 in./8 mm
HP	6.0 EBHP
Ship Weight	19.0 lbs.

Download Specification

Details

50 SERIES - 24 MM SOLID SHAFT

50 SERIES – 24 MM SOLID SHAFT

TT9441

Specifications

GPM	4.4
PSI	2500
RPM	3400
Bore	0.591 in./15 mm
Stroke	.394 in./10 mm
HP	7.5 EBHP
Ship Weight	19.0 lbs.

Download Specification

Details

50 SERIES - 24 MM SOLID SHAFT

50 SERIES – 24 MM SOLID SHAFT
