• Flows from 3.5 GPM to 5.6 GPM
  • The preferred pump frame in the pressure cleaning industry
  • Forged brass manifold with an exclusive lifetime warranty
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy-duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
  • Available in left-handed “L” version

47 Series – Brass Manifold – Specifications:
Max. Inlet Pressure:   125 PSI
Max. Fluid Temperature:   165° F
Inlet Port Thread:   1/2″-14 BSP-F
Discharge Port Thread:   3/8″-19 BSP-F
Shaft Diameter:   .945 in./24 mm
Pump Dimensions:   12.2″x9.2″x6.9″(33.8 oz. versions)
Pump Dimensions:   12.6″x9.2″x6.9″(40.6 oz. versions)
Use GP Series 100 Oil

Showing 1–16 of 29 results

  • T1011

    Specifications

    GPM

    PSI

    RPM

    1125

    Bore

    .787 in./20 mm

    Stroke

    .630 in./16 mm

    HP

    6.2 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • T1011

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    .787 in./20 mm

    Stroke

    .630 in./16 mm

    HP

    5.8 EBHP

    Ship Weight

    32 lbs.

    View Details

    Download Specifications

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • T1321

    Specifications

    GPM

    PSI

    RPM

    1150

    Bore

    .866 in./22 mm

    Stroke

    .630 in./16 mm

    HP

    7.9 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • T1621

    Specifications

    GPM

    PSI

    RPM

    1050

    Bore

    .866 in./22 mm

    Stroke

    .630 in./16 mm

    HP

    8.6 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD

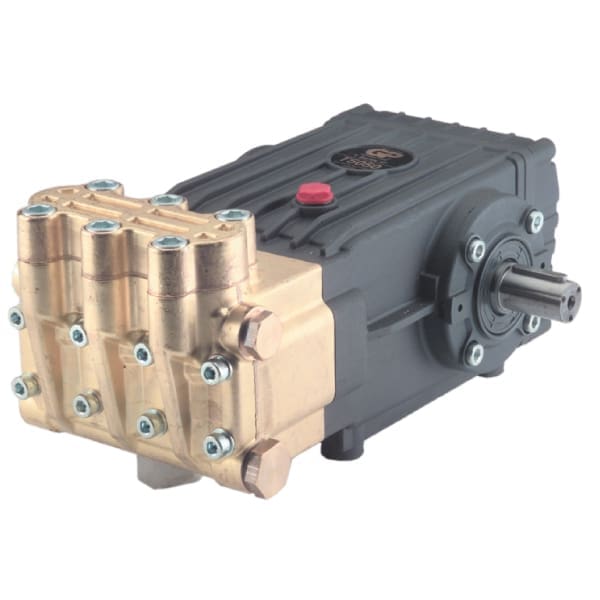

  • T5050

    Specifications

    PSI

    RPM

    1845

    Bore

    0.63 in./16 mm

    Stroke

    0.748 in./19 mm

    GPM

    HP

    0 HP

    Ship Weight

    41 lbs.

    View Details

    Download Specification

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • T921

    Specifications

    GPM

    PSI

    RPM

    1050

    Bore

    .866 in./22 mm

    Stroke

    .630 in./16 mm

    HP

    5.8 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • T9211

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .787 in./20 mm

    Stroke

    .394 in./10 mm

    HP

    8.2 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – NICKEL-PLATED MANIFOLD
  • T9281

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .630 in./16 mm

    Stroke

    .630 in./16 mm

    HP

    11.0 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – NICKEL-PLATED MANIFOLD
  • TS1011

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    .787 in./20 mm

    Stroke

    .472 in./12 mm

    HP

    5.5 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • TS1011

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .787 in./20 mm

    Stroke

    0.472 in./12 mm

    HP

    4.9 EBHP

    Ship Weight

    32 lbs.

    View Details

    Download Specifications

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • TS1021

    Specifications

    PSI

    Bore

    0.787 in./20 mm

    Stroke

    0.63 in./16 mm

    GPM

    HP

    0 HP

    Ship Weight

    32 lbs.

    View Details

    Download Specifications

    Download

    47 Series Service Instructions

    Download
  • TS1321

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    .866 in./22 mm

    Stroke

    .472 in./12 mm

    HP

    6.8 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • TS1331

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    .787 in./20 mm

    Stroke

    0.394 in./10 mm

    HP

    5.0 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • TS1331

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    .787 in./20 mm

    Stroke

    .394 in./10 mm

    HP

    5.5 EBHP

    Ship Weight

    32 lbs.

    View Details

    Download Specifications

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – BRASS MANIFOLD
  • TS1511

    Specifications

    PSI

    Bore

    0.787 in./20 mm

    Stroke

    0.472 in./12 mm

    GPM

    HP

    0 HP

    Ship Weight

    32 lbs.

    View Details

    Download Specifications

    Download

    47 Series Service Instructions

    Download
  • TS1621

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    .866 in./22 mm

    Stroke

    .472 in./12 mm

    HP

    8.1 EBHP

    Ship Weight

    32.0 lbs.

    View Details

    Download Specification

    Download

    47 Series Service Instructions

    Download
    47 SERIES – 24 MM SOLID SHAFT – NICKEL-PLATED MANIFOLD
