66 Series – TSP – Features:

  • Flows from 3.6 GPM to 5.0 GPM
  • Compact, High Pressure
  • Oversized roller bearings
  • Fully anodized crankcase
  • Innovative new seal design extends seal life
  • New plunger design improves “thermal shock” resistance
  • New valve cap design improves hydrostatic performance
  • Also available in “L” left-handed versions

66 Series – TSP – Specifications:
Max. Inlet Pressure:   125 PSI
Max. Fluid Temperature:   165° F
Inlet Port Thread:   1/2″-14 BSP-F
Discharge Port Thread:   3/8″-19 BSP-F
Shaft Diameter:   .945 in./24 mm
Pump Dimensions:   13.84″x 9.8″ x 7.7″
Minimum Inlet Pressure:   30 PSI
Crankcase Oil Capacity:   40.6 oz.
Use GP Series 100 Oil

Showing all 6 results

  • TSP1619

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    0.629 in./16 mm

    Stroke

    .748 in./18 mm

    HP

    17.8 EBHP

    Ship Weight

    51.8 lbs.

    View Details

    Download Specification

    Download

    TSP Brochure

    Download

    TSP Service Instructions

    Download
    66 SERIES – TSP – HIGH PRESSURE – 24 MM SOLID SHAFT
  • TSP1619

    Specifications

    GPM

    PSI

    RPM

    1750

    Bore

    0.629 in./16 mm

    Stroke

    0.748 in./19 mm

    HP

    17 EBHP

    Ship Weight

    51.8 lbs.

    Market

    , , , , , , , , ,

    View Details

    Download Specifications

    Download

    TSP Brochure

    Download

    TSP Service Instructions

    Download
    66 SERIES – TSP – HIGH PRESSURE – 24 MM SOLID SHAFT
  • TSP1621

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    0.629 in./16 mm

    Stroke

    .826 in./21 mm

    HP

    19.2 EBHP

    Ship Weight

    51.8 lbs.

    View Details

    Download Specification

    Download

    TSP Brochure

    Download

    TSP Service Instructions

    Download
    66 SERIES – TSP – HIGH PRESSURE – 24 MM SOLID SHAFT

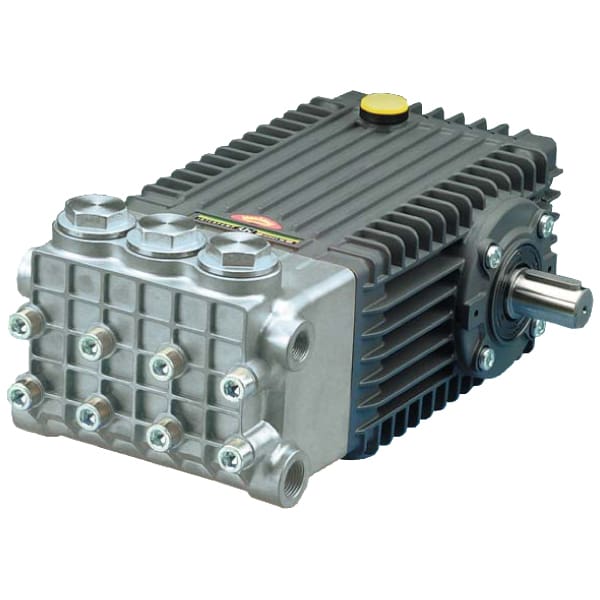

  • TSP1621N

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    0.629 in./16 mm

    Stroke

    .826 in./21 mm

    HP

    21.4 EBHP

    Ship Weight

    51.8 lbs.

    View Details

    Download Specifications

    Download

    TSP Brochure

    Download

    TSP Service Instructions

    Download
    66 SERIES – TSP – HIGH PRESSURE – 24 MM SOLID SHAFT, NICKEL-PLATED
  • TSP1819

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    .709 in./18 mm

    Stroke

    0.748 in./19 mm

    HP

    17.5 EBHP

    Ship Weight

    51.8 lbs.

    View Details

    Download Specification

    Download

    TSP Brochure

    Download

    TSP Service Instructions

    Download
    66 SERIES – TSP – HIGH PRESSURE – 24 MM SOLID SHAFT
  • TSP1821

    Specifications

    GPM

    PSI

    RPM

    1450

    Bore

    0.709 in./18 mm

    Stroke

    .826 in./21 mm

    HP

    19.2 EBHP

    Ship Weight

    51.8 lbs.

    View Details

    Download Specification

    Download

    TSP Brochure

    Download

    TSP Service Instructions

    Download
    66 SERIES – TSP – HIGH PRESSURE – 24 MM SOLID SHAFT
