EZ Gas

For Gasoline Engines
EZ Series – Features:

  • Triplex plunger pumps
  • Forged brass manifold with an exclusive lifetime warranty
  • Solid ceramic plunger design
  • Die-cast, anodized aluminum oil bath crankcase
  • Premium roller bearings
  • Flex coupling and bell housing available for direct drive
  • Unitized stainless steel inlet and discharge valves

EZ Series – Hollow Shaft – Gas – Specifications:
Max. Inlet Pressure:   125 PSI
Max. Fluid Temperature:   165° F
Inlet Port Thread:   1/2″-14 BSP-F
Discharge Port Thread:   3/8″-19 BSP-F
Shaft Diameter:   1 inch
Pump Dimensions:   8.8″x 9.4″x 6.5″
Crankcase Oil Capacity:   14.0 oz.
Use GP Series 100 Oil

  • EZ3030G34

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    .299 in./7.6 mm

    HP

    9.9 GHP

    Ship Weight

    19.1 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details
  • EZ3030G34UI

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    .299 in./7.6 mm

    HP

    10.8 GHP

    Ship Weight

    19.3 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B) WITH BUILT-IN TP UNLOADER AND DOWNSTREAM INJECTOR

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B) WITH BUILT-IN TP UNLOADER AND DOWNSTREAM INJECTOR

    Details
  • EZ3035G

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    .335 in./8.5 mm

    HP

    10.8 GHP

    Ship Weight

    19.1 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details

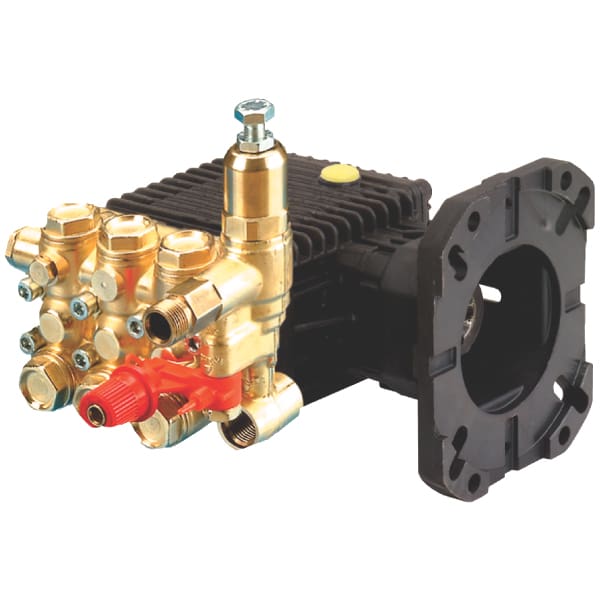

  • EZ3035GUI

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    .335 in./8.5 mm

    HP

    12.6 GHP

    Ship Weight

    19.3 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B) WITH BUILT-IN TP UNLOADER AND DOWNSTREAM INJECTOR

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B) WITH BUILT-IN TP UNLOADER AND DOWNSTREAM INJECTOR

    Details
  • EZ3040G

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    .374 in./9.5 mm

    HP

    12.3 GHP

    Ship Weight

    19.1 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details

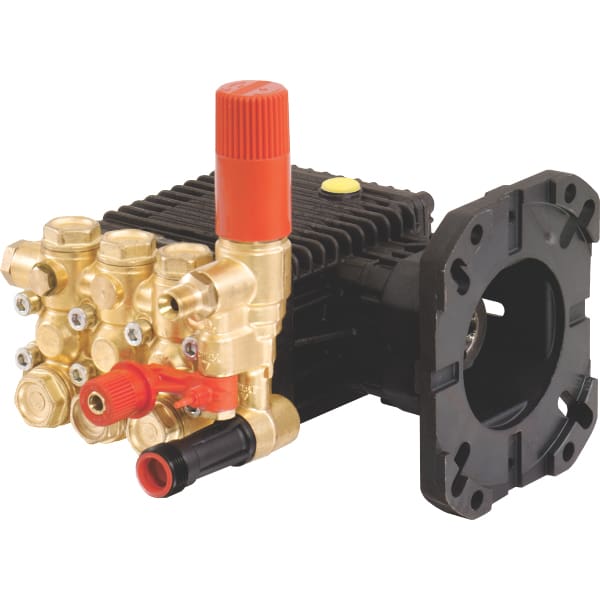

  • EZ3040GUI

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    0.374 in./10 mm

    HP

    14.4 GHP

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B) WITH BUILT-IN TP UNLOADER AND DOWNSTREAM INJECTOR

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B) WITH BUILT-IN TP UNLOADER AND DOWNSTREAM INJECTOR

    Details
  • EZ3045G

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .591 in./15 mm

    Stroke

    0.433 in./11 mm

    HP

    14.2 GHP

    Ship Weight

    19.1 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details
  • EZ4030G34

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .512 in./13mm

    Stroke

    .374 in./9.5 mm

    HP

    12.3 GHP

    Ship Weight

    20.0 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details
  • EZ4035G34

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .512 in./13mm

    Stroke

    0.433 in./11 mm

    HP

    14.4 GHP

    Ship Weight

    20.0 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details
  • EZ4040G

    Specifications

    GPM

    PSI

    RPM

    3400

    Bore

    .512 in./13mm

    Stroke

    .512 in./13 mm

    HP

    16.4 GHP

    Ship Weight

    20.0 lbs.

    EZ SERIES - 1" HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    EZ SERIES – 1″ HOLLOW SHAFT, FLANGED FOR DIRECT COUPLE TO GASOLINE ENGINES (SAE J609B)

    Details
